Rexroth Hydraulic Motor Parts
>
|
| Place of Origin | CHINA |
| Brand Name | HongLi |

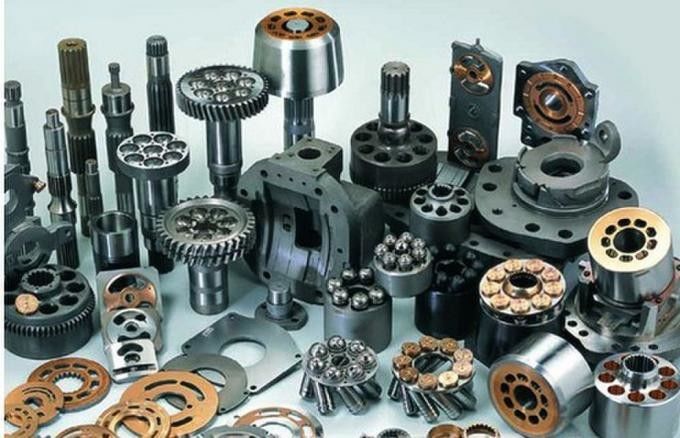

Machine Tool Rexroth Hydraulic Motor Repair Parts A2fm23 , A2fe23 , A2fo23
Quick Detail:
Place of Origin: China
Model No: REXROTH A2FM23
Series : A2FM10, A2FM12, A2FM16, A2FM23, A2FM28, A2FM45, A2FM56, A2FM63, A2FM80, A2FM107, A2FM125, A2FM200, A2FM250
Rexroth A2FM10, A2FM12, A2FM16, A2FM23, A2FM28, A2FM45, A2FM56,
A2FM63, A2FM80, A2FM107, A2FM125, A2FM200, A2FM250,piston motor,
spare parts,rotary group,hydraulic pump repair,replacement parts,rotating group,remanufacture
| A2FO23/A2FM23/A2FE23 | ||
| Ring piston | 7 | |
| Ring | 14 | |
| Cylinder block | 1 | |
| Valve plate L | 1 | |
| Valve plate R | 1 | |
| Valve plate M | 1 | |
| Retainer plate | 1 | |
| Disk spring | 4 | |
| Center pin | 1 | |
| Center pin | 1 | |
| Piston spring | 7 | |
| Center washer | 1 | |
| Shaft seal | 1 | |
| Drive shaft clip | 1 | |
| Drive shaft | 1 | |
| Socket bolt | 7 | |
| Drive shaft screw design | 1 | |
| Drive shaft | 1 | |
| Shaft seal | 1 | |
| Big bearing | 1 | |
| Small bearing | 1 | |
Appliions:
Hydraulic system. Ship Hydraulic system.
for excavator, machine tool, farming, slurry mud,Oilfield Drilling Rig
Mixer Truck, Concrete Pump truck , construction machinery.
| A2FM23 | |
| Cylinder Block | φ61×φ8.5×52 φ12(7Holes ) |
| Piston with Ring | Sφ12×57.7 Sφ16 |
| Center Pin | φ14.2×66.5 Sφ16 |
| Valve Plate M | φ50.5×φ8.5×8.8 |
| Retainer Plate | φ69.1×φ18×2.9 Sφ16(7Holes ) |
